Portable PPK GNSS System for Multirotor and Fixed Wing Drone UAV for High Accuracy Mapping

China Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping supplier
Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping supplier Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping supplier Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping supplier Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping supplier

Large Image :  Portable PPK GNSS System for Multirotor and Fixed Wing Drone UAV for High Accuracy Mapping

Product Details:

Place of Origin: CHINA
Brand Name: GL
Certification: CE,ISO,ROHS
Model Number: GLP970

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Not Show Here
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: 500Sets/Month
Contact Now
Detailed Product Description
Navigation System: GPS;Beidou;GLONASS;Galileo;SBAS;QZSS Frequency: Dual
Accuracy: 1CM Pixhawk Compatible: Yes
Protocol: NMEA0183,Ublox Output Format: RTCM3.X,SCMR,CMRX, BINEX
Process Programe: Novatel Waypoint

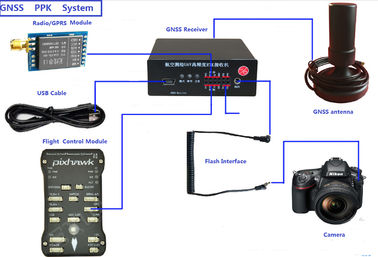

Portable PPK GNSS System for Multirotor and Fixed Wing Drone UAV for High Accuracy Mapping​



1.Main Parameters

GNSS SPECIFICATIONS
220 Track Channels GPS: L1 C/A, L2E, L2C, L5;BeiDou: B1, B2;GLONASS: L1 and L2 C/A;QZSS: L1 C/A, L1 SAIF, L2C, L5 SBAS: L1 C/A, L5
Position Accuracy Horizontal : ±(8 mm + 1 ppm) RMS
Vertical: ±(15 mm + 1 ppm) RMS
Processor and Inner Storage
processoer CORTEX M3
Inner Flash Capacity Innter 50M data capacity,Compress up to 300M
DATA FLASH 16M FLASH
Power Consumption <2.5W
Update Rate Defaults:10Hz;Max:20Hz
Storage Format 5:1Compress Ratio Format RAWDATA,RT17/RT27
Hardware Interface
Indicator  3 LED Indicator,Mode Indicator,Event Indicator,Satellite Signal Indicator
Camera Control Port 2.5mm Jack for POS Signa Input
Double Row 2*6 Jack Power Source Input,Difference Serial Port,Control Port and Compass Port
Antenna Port 1 SMA External Antenna Port
Mini USB Interface  1Mini USB Interface for Datas Read
Physical Parameters
Dimension 64x64x23.5mm
Weight  Mainbody 110g,Helix Antenna 18g
Working Ambient
Work Temperature –20 °C ~60°C
Storage Temperature  –40°C ~80°C



2.Packing List

ITEMS QUANTITY
GLP970 GNSS Receiver  1

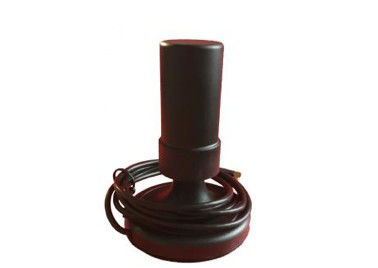

GNSS Helix Antenna

GPS L1 L2

GLONASS G1 G2

BeiDou B1 B3

1
USB Data Lead 1

Power Resource Lead

1
Camera Control Lead 1
Post Process Software Softdog Optional
Hot Shoe Convertor  Optional



Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping



Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy MappingPortable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping

Portable PPK GNSS System for Multirotor and Fixed Wing Drone  UAV for High Accuracy Mapping
