Product Details:
Payment & Shipping Terms:
|
Material: | Carbon Fiber | Delivery Time: | 1 Week |
---|---|---|---|
Flight Endurance: | Unlimited/Continuous | Payload: | 3Kg |

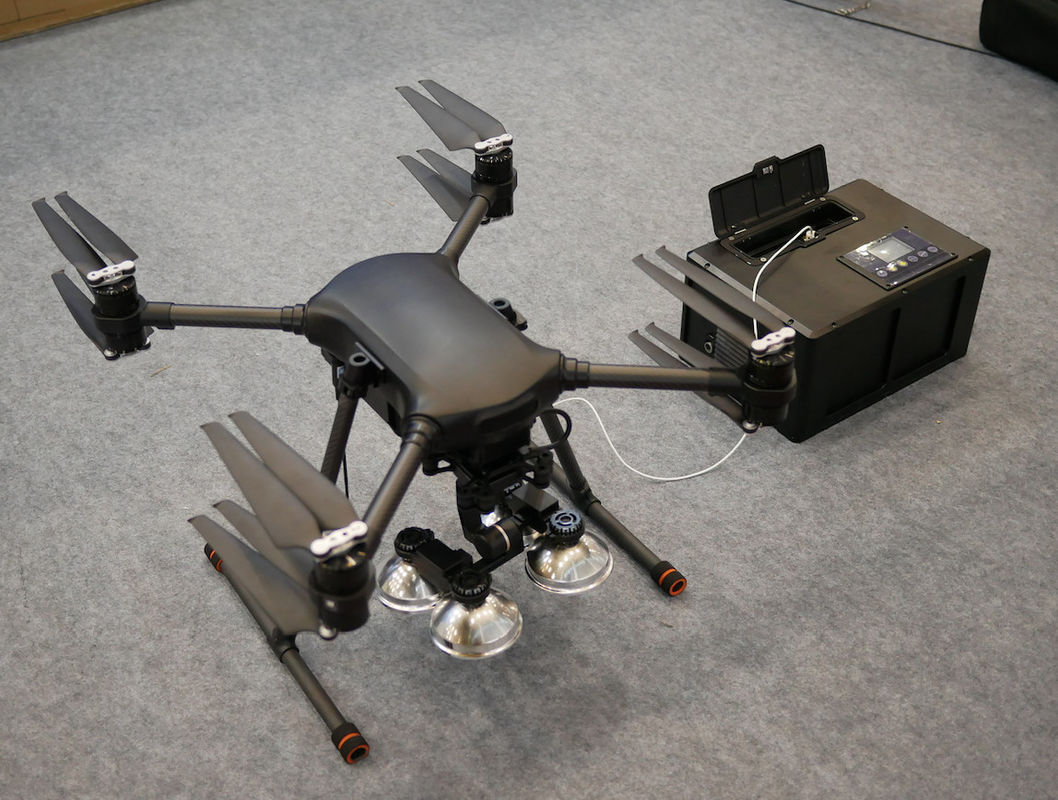

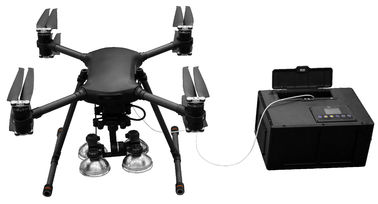

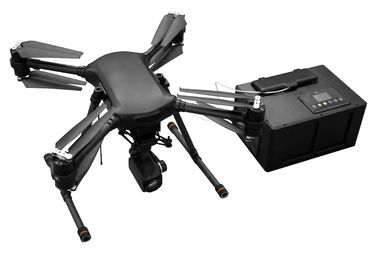

Tethered Drone Platform with Tethered Power Supply and An Integrated Ground Power Box Continuously Flight 3Kg Payload
Tethered Drone Platform Parameters:
Wheelbase:720mm Folding Method: Unfoldable
Body Weight:3950g Onboard Backup Battery: Lithium Battery 5300mAh
Payload:3.0g
Ground End Parameters:
Cable Length:100m Size:350*250*190mm
Line Retracting Mode: Automatic+Manual Shell Material: Aviation Aluminum Alloy
Output Power:2500W Working Temperature:-25℃-50℃
Body Weight:8000g Rated Input Voltage:220V AC
UE Generator Adapter:4000g Output Voltage:380V-420V DC
Battery Adapter:2000g
Onboard Power Supply Parameters:
Output Overcurrent Protection :380V
Output Short Circuit Protection:23V±1.5V
Efficiency:>95%
Protection Performance Requirements:
Input low pressure/high pressure .Output low pressure/High Pressure
Overcurrent ,Surge,Over temperature protection
Level IP53(Customized Optional)
