| Place of Origin: | China |
| Brand Name: | GL |
| Certification: | CE |
| Model Number: | GLVT |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Customized |

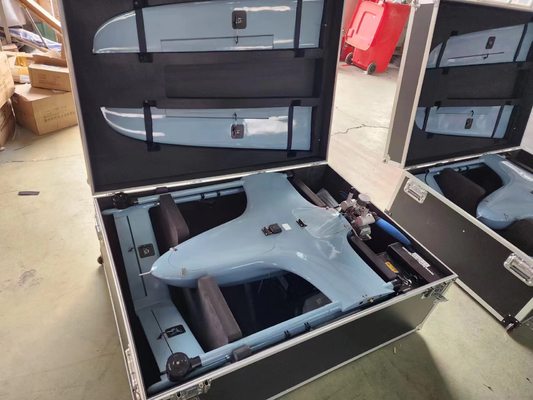

| Packaging Details: | Aluminum Hard Case |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/month |
| Material: | Composite And Carbon Fiber | MTOW: | 30kg |
|---|---|---|---|
| Wingspan: | 4700mm | Length: | 2070mm |
| Max Payload: | 10kg | Endurance: | 18Hours |
| Flight Range: | 350km | Gasoline: | 92# 95# 10L |
| Dual Zoom Camera: | Yes | GCS: | Hand Holding Integration GCS |
| Full Autonomous Flight: | Yes | Flight Height: | 5000m |
| PPK: | Yes | IP: | 66 |
| Flight Speed: | 160km/h |

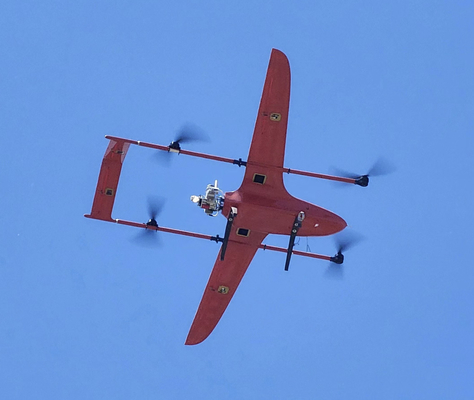

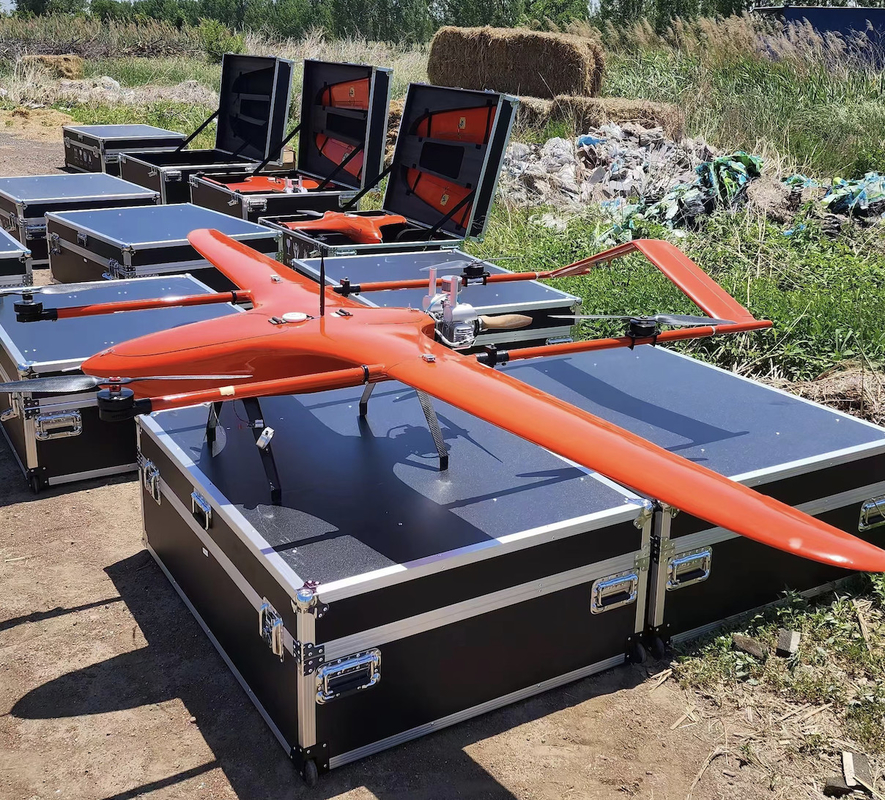

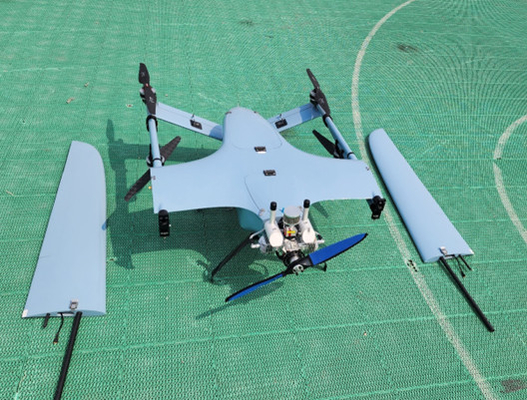

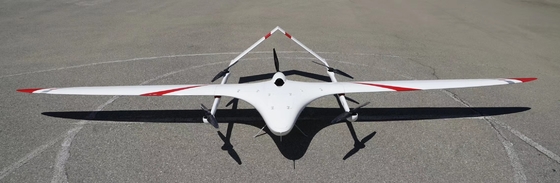

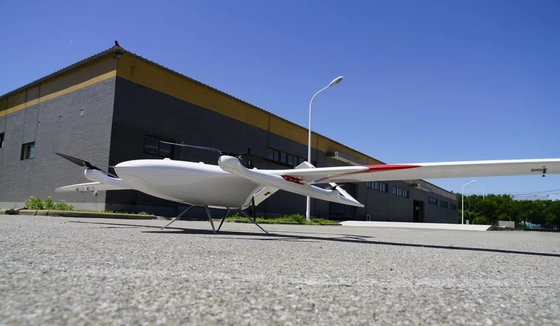

New Gasoline VTOL 18Hours Endurance ,350Km Range for Survey, Surveillance and Border Patrol
Specifications
& VTOL Type: VTOL

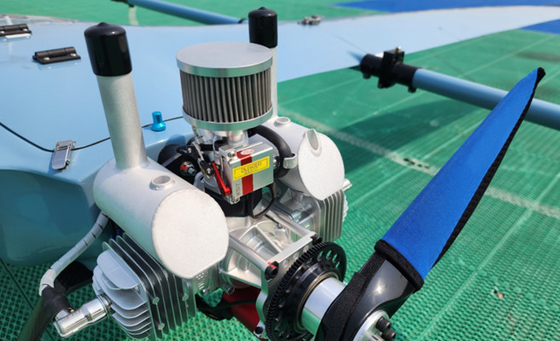

& Power :Gasoline 92# 95# 10L
& Wingspan:4.7Meters
& Fuselage:2.07Meters
& MTOW:30Kg
&Payload:10Kg
&Take-off & Landing:VTOL
&Endurance:18Hours
&Max.speed:160km/h (Sea Level Pressure)
&Cruise speed:100km/h (Sea Level Pressure)
&Flight Height:5000m
&Camera:Oblique Camera,210MP,CMOS:5pcs,35MM Lens+24MM,Oblique35,Orthophoto24,APS-C
&Tracking Accuracy:Horizontal:5cm;Vertical:3cm
&Flight Radius:350Km
&Emergency Protection:Low Power Protection,GEO Fence,RTL
&Image Format:RAW/JPG+Trigger Position
&Lidar:100 m range with compact form factor;Proven 905 nm tech, with largest install base;Top-of-the-line field-of-view;Best-in-class accuracy and calibrated intensity;Best-in-class power and temperature range;Sensor-to-sensor interference mitigation feature;Optional, enhanced short range detection;
&Wind Resistance:Up to 20m/s
&Working Temperature : -30C--85C
&Autopilot:Autonomous Flight ,VTOL Version
&Remote Controller:Futaba-T8fg Optional
&PPK:Optional 2cm Accuracy
