Place of Origin: | China |
Brand Name: | GL |
Certification: | CE |
Model Number: | GLG8 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Subject to Solutions |
Packaging Details: | WOOD CASE |
Delivery Time: | 7 Days |
Payment Terms: | T/T |
Supply Ability: | 500SETS |
Flight Duration: | 300mins | Flight Distance: | 280Km |
---|---|---|---|
Material: | SLF | Color: | Customized |

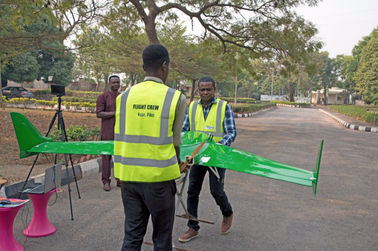

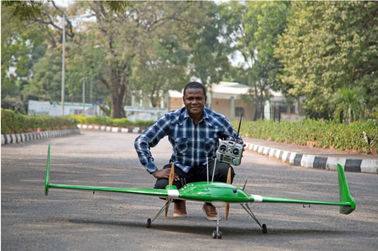

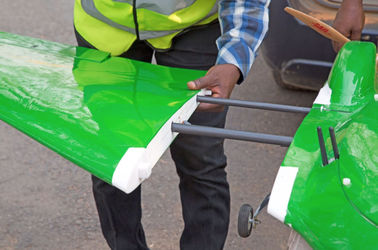

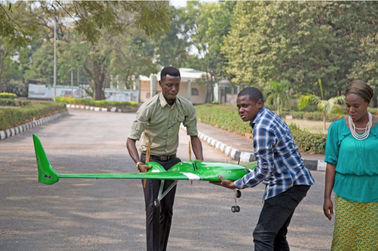

FIXED-WING Drone GLG8 300mins Flight Time,280Km flight distance ,special for Mapping and Surveillance
Weight(RTF):8-12Kg
KIT,ARF,RTF and Optional Accessories
NO | Items | Quantity | |
1.1 KIT | GLG8 Drone | 1Set | |
1.2 ARF |
GLG8 Drone | 1Set | |
3525 kv560 Brushless Motor | 2Sets | ||
ESC | 2*80A | ||
17g EMAX analog Servo | 3pieces | ||
1.3 RTF |
GLG8 Drone | 1Set | |
WFT09II Remote Controller | 1 Set | ||
2*22000mah 6S Li-Po | 2Sets | ||
3525 kv560 Brushless Motor | 2Sets | ||
ESC | 2*80A | ||
17g EMAX analog Servo | 3pieces | ||
15*7inches Folding Contrary-Rotating Wood Propeller | 1piece | ||
Optional Accessories | |||
2 | Improved PIX Flight Control | 1set | |
3 | OSD System | 1set | |
4 | Digital Transmission system | 1set | |
5 | GPS Module:M8N GPS System | 1set | |
6 | Airspeed | 1 set | |
Amperemeter | 1 set | ||
7 | 5.8g Image transmission1W+Receiver+antenna System | 1set | |
8 | Camera Nikon D810 | 1set | |
9 | Polycom Camera 16G | 1set | |
10 | Link V2 433MHZ 16C RC Range-Extended | 1set | |
11 | 7-inch Display Screen all-in-one | ||
12 | 10KG Parachute-GLG8 | 1set | |
13 | Ground Station Control Center | 1 set |
Youtube:
https://youtu.be/ctcBNakdJGY (New video of the GLG8 landing)
https://youtu.be/QwrcJ8IRZno(Fixed-Wing Drone GLG8)
Notes for SLF Materials:
SLF is Super light fiber woven material,a new technology material applied in military,agriculture,reconnaissance.It has been totally improved in configuration and function compared with EPO,EPP.Its density is between EPO and EPP,its rigid is 2-3 times than EPO, roughness is 10 times than EPO.Extremely anti-crash,even damaged with regular cut and quick traceless repair with higher strength.Much lighter than other material,more convenient and portable for users and easy maintenance!
Comparison Test on SLF ,EPO and EPP
SLF VS EPO: new material rigid is 2-3 times than EPO, roughness is 10 times than EPO
SLF VS EPP: new material rigid is 2-3 times than EPP, roughness is 8 times than EPP
SLF VS wooden material: new material rigid is a little bit less than wooden box material, but it is appropriately with wooden box material, but the roughness is much better than wooden box material.
SLF VS glass steel: new material rigid is less than glass steel , but the roughness is much better than glass steel.
