    Product Details:

    Place of Origin: China
    Brand Name: GL
    Certification: CE
    Model Number: GL8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Subject to Solutions

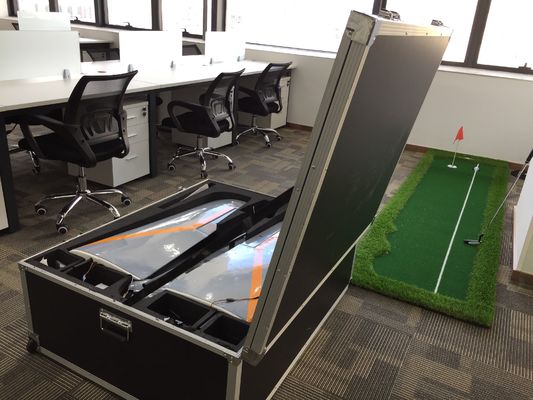

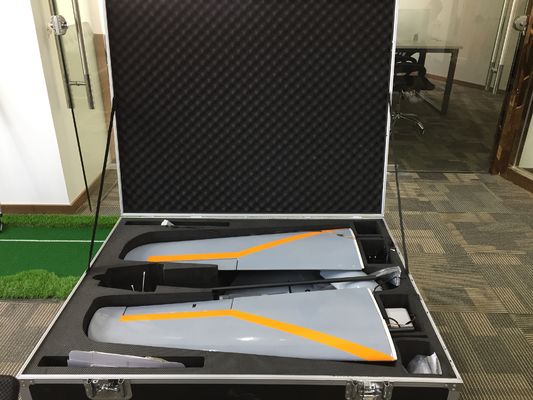

    Packaging Details: WOOD CASE
    Delivery Time: 7 Days
    Payment Terms: T/T
    Supply Ability: 500SETS
    Contact Now
    Detailed Product Description
    Protection Level: IP67 Type: Outlet Box
    Weight: 1400g Flight Duration: 240mins
    Flight Distance: 180Km Max Cruise Speed: 150KM/H
    Payload: 3.5KG Flight Height: 6000M
    Anti-Wind: 7Level Materials: SLF

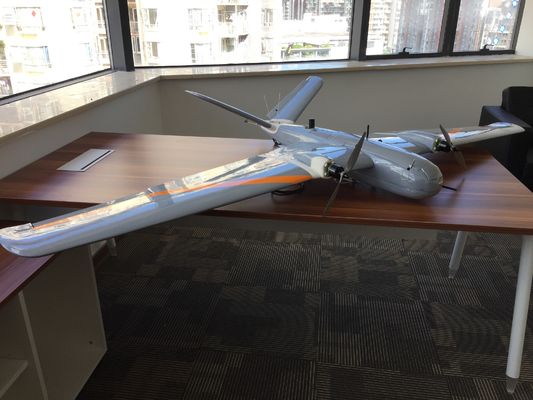

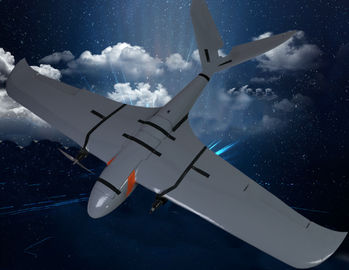

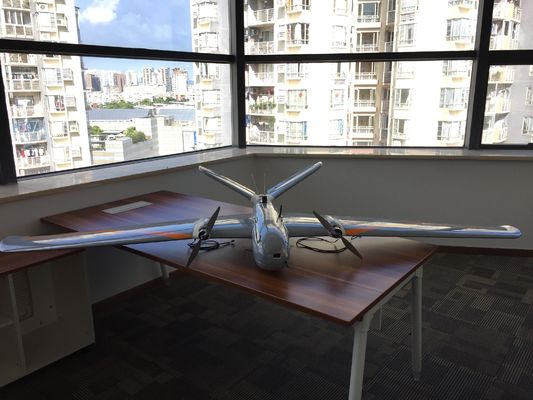

    Fixed-Wing Drone,4Hours Duration for Mapping,Surveillance 2.1M Wingspan New Material Autonomously Flight



    Materials:SLF;high temperature resistance fibre

    Weight(Kit):1400G

    Wingspan:2100mm

    Length:1200mm

    Flight Control:PIXHAWK Flight Control

    Wing area: 60dm2

    Payload:3.5kg

    Take off: Throw Go/Catapult

    Flight Altitude:6000m

    Max Cruise Speed:150km/h

    Flight Duration:240mins

    Flight Distance:180Km

    Wind Proof:7 level

    Landing:Parachute or downhill race

    Camera:Sony NEX-5N Resolution 4912*3264 HD1080p

    Motor:1814kv840*2 Brushless Motor

    GPS Module:M8N GPS

    ESC: 40A*2

    Propeller: 12*9 folding

    Battery: 2200mah 6S Li-Po

    Battery Compartment:240*114*80mm

    Camera Compartment:160*150*75mm

    Autopilot Compartment:110*145*50mm
    Fixed-Wing Drone, 4Hours Duration  for Mapping,Surveillance 2.1M Wingspan New Material Autonomously Flight
    Fixed-Wing Drone, 4Hours Duration  for Mapping,Surveillance 2.1M Wingspan New Material Autonomously Flight


    Videos Shares



                  https://youtu.be/HQP2y_0r-nY





    Notes for SLF Materials:

    SLF is Super light fiber woven material,a new technology material applied in military,agriculture,reconnaissance.It has been totally improved in configuration and function compared with EPO,EPP.Its density is between EPO and EPP,its rigid is 2-3 times than EPO, roughness is 10 times than EPO.Extremely anti-crash,even damaged with regular cut and quick traceless repair with higher strength.Much lighter than other material,more convenient and portable for users and easy maintenance!

    Comparison Test on SLF ,EPO and EPP

    SLF​ VS EPO: new material rigid is 2-3 times than EPO, roughness is 10 times than EPO
    SLF​ VS EPP: new material rigid is 2-3 times than EPP, roughness is 8 times than EPP
    SLF​ VS wooden material: new material rigid is a little bit less than wooden box material, but it is appropriately with wooden box material, but the roughness is much better than wooden box material.
    SLF​ VS glass steel: new material rigid is less than glass steel , but the roughness is much better than glass steel.
