| Place of Origin: | China |
| Brand Name: | GL |
| Certification: | CE |
| Model Number: | GLTwins |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Subject to Solutions |
| Packaging Details: | Carton or Aluminum Hard Case |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
| Supply Ability: | 500SETS |
| Wingspan: | 1880mm Or 2500mm | Fuselge Length: | 960mm |
|---|---|---|---|
| Height: | 260mm | Detachable: | Yes |
| Flight Duration: | 150mins-240mins | Flight Distance: | 80Km |
| Material: | SLF | Take Off: | Hand Throw;Catapult |
| Flight Altitude: | 6000m | Motors: | 2814kv 840*2 |
| ESC: | 40A*2 | Servos: | 90g |
| Landing: | Taxing ;Parachute | RTK/PPK: | Optional |
| Catapult: | Optional |

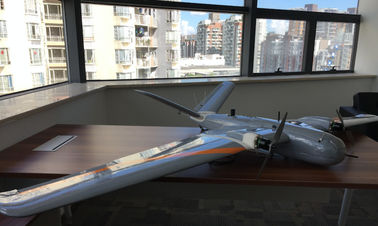

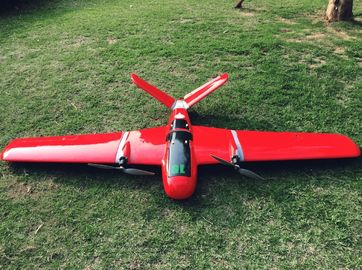

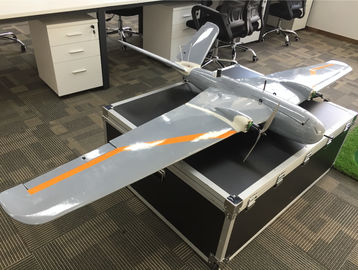

RTK Detachable Twin Motor Fixed-Wing drone 1880MM Wingspan and 240Mins Duration for Mapping and Surveillance
GLTwins1880 Fixed Wing UAV
Packages:
1) Airframe with Wingspan of 1880mm; 1pcs
2) Motor + ESC + Propellers + Airspeed Indicator + GPS + Servos Parachute; 1 pcs
3) Radio Controller; 1pcs
4) 80 km Telemetery Radio Set; 1 pcs
5) 6S (22.2V) 16000 mAh battery; 1 pcs
6) Pixhawk Flight Controller; 1 pcs
7) Ground Control Station (GCS) Software

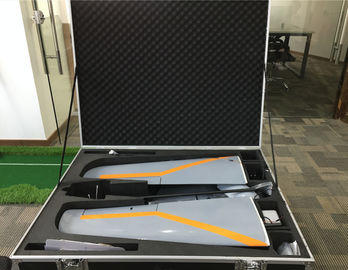

8) Carrying Case
GLTwins 2500 Fixed Wing UAV
Packages:
1) Airframe with Wingspan of 2500 mm; 1 pcs
2) Motor + ESC + Propellers + Airspeed Indicator + GPS + Servos Parachute; 1 pcs
3) Radio Controller: 1 pcs
4) 80 km Telemetry Radio Set; 1 pcs
5) 6S (22.2V) 16000 mAh battery; 1 pcs
6) Pixhawk Flight Controller; 1 pcs
7) Ground Control Station (GCS) Software
8) Carrying Case
RTK PPK: Optional
50KM-100KM 1080P Image and Video Transmission System:Optional
Lead Time: 7 days
Videos Shares
https://youtu.be/5Nbij_Wa31Y (Special Material Strong for Hard Stike)
https://youtu.be/xok42x3D1lw (Special Material No Seam Repair)
https://youtu.be/42hlRux-Cmk (GLTwins Take Off)
https://youtu.be/4bVaCF38ltc (GLTwins Office Show)
Notes for SLF Materials:
SLF is Super light fiber woven material,a new technology material applied in military,agriculture,reconnaissance.It has been totally improved in configuration and function compared with EPO,EPP.Its density is between EPO and EPP,its rigid is 2-3 times than EPO, roughness is 10 times than EPO.Extremely anti-crash,even damaged with regular cut and quick traceless repair with higher strength.Much lighter than other material,more convenient and portable for users and easy maintenance!
Comparison Test on SLF ,EPO and EPP
SLF VS EPO: new material rigid is 2-3 times than EPO, roughness is 10 times than EPO
SLF VS EPP: new material rigid is 2-3 times than EPP, roughness is 8 times than EPP
SLF VS wooden material: new material rigid is a little bit less than wooden box material, but it is appropriately with wooden box material, but the roughness is much better than wooden box material.
SLF VS glass steel: new material rigid is less than glass steel , but the roughness is much better than glass steel.
