PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance

PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance

    • PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance
    • PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance
    • PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance
    • PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance
  • PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance

    Product Details:

    Place of Origin: China
    Brand Name: GL
    Certification: CE
    Model Number: GLTwins

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Subject to Solutions

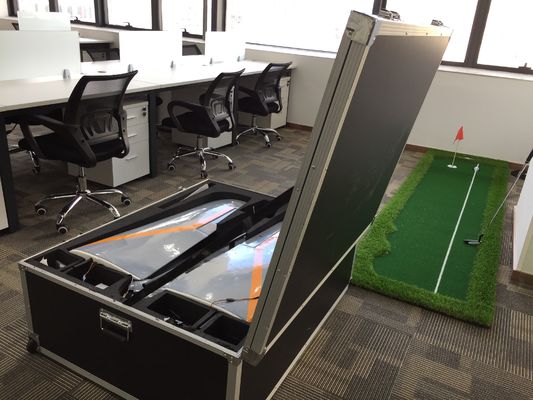

    Packaging Details: Carton or Aluminum Hard Case
    Delivery Time: 7 Days
    Payment Terms: T/T
    Supply Ability: 500SETS
    Contact Now
    Detailed Product Description
    Wingspan: 2100mm Fuselge Length: 960mm
    Height: 260mm Detachable: Yes
    Flight Duration: 240mins Flight Distance: 180Km
    Material: SLF Flight Altitude: 6000m
    ESC: 40A*2 Servos: 9g*5
    Landing: Taxing ;Parachute Take Off: Hand Throw;Catapult
    Wing Area: 53dm2 Motors: 2814kv 840*2

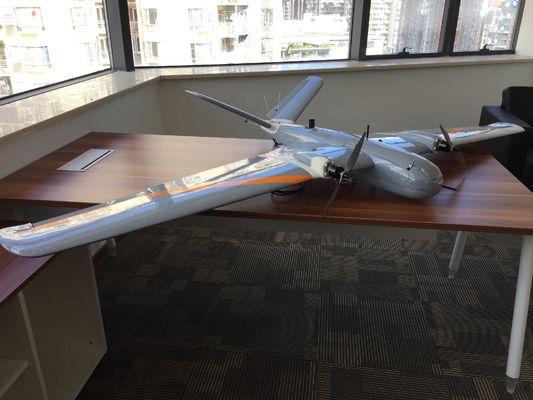

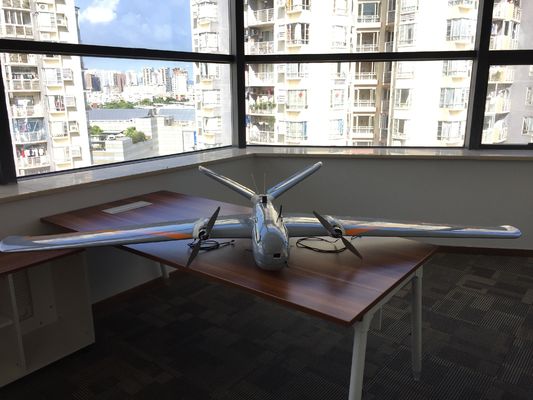

    PPK Detachable Twin Motor Fixed-Wing drone Flight Distance:180Km and 120Mins —240Mins Duration for Mapping and Surveillance

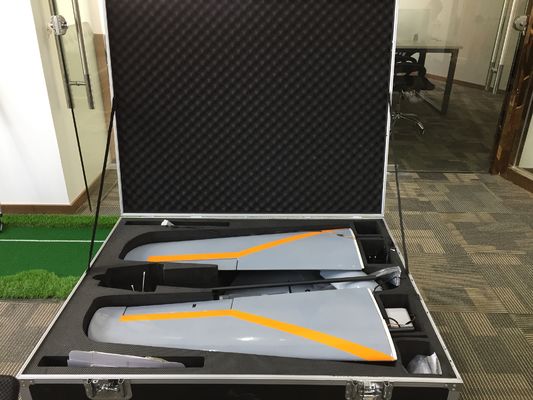

    1. Detachable  body.

    2. Portable and suit for rough handling in the wild.

    3. It's really safe,reliable and durable.Really cost-effective for consumers.

    4. Reasonable located the parachute,camera,flying controller and data transmitter.
    5. RTK :3systems,Dual frequency,1cm accuracy,special design for Pixhawk

    Materials:SLF;high temperature resistance fibre

    Weight(Kit):1.75Kg

    Wingspan:2100mm

    Length: 960mm

    Flight Control:PIXHAWK Flight Control

    Wing area: 53dm2

    Payload:3.5kg

    Take off: Throw Go/Catapult

    Flight Altitude:6000m

    Flight Speed:50-80km/h

    Flight Duration:240mins

    Flight Distance:180Km

    Wind Proof:6 level

    Landing:Parachute or downhill race

    Camera:Sony NEX-5N Resolution 4912*3264  HD1080p

    Motor:1814kv840*2  Brushless  Motor

    GPS Module:M8N GPS

    ESC: 40A*2

    Propeller:  12*9   folding

    Battery: 2200mah 6S Li-Po /16000mah 4S Li-Po
    PPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and SurveillancePPK Detachable Twin Motor Fixed-Wing drone Flight Distance180Km and 240Mins Duration for Mapping and Surveillance

    Videos:


    https://youtu.be/5Nbij_Wa31Y (Special Material Strong for Hard Stike)



    https://youtu.be/xok42x3D1lw (Special Material No Seam Repair)





    https://youtu.be/42hlRux-Cmk (GLTwins Take Off)



    https://youtu.be/4bVaCF38ltc (GLTwins Office Show)



    Notes for SLF Materials:

    SLF is Super light fiber woven material,a new technology material applied in military,agriculture,reconnaissance.It has been totally improved in configuration and function compared with EPO,EPP.Its density is between EPO and EPP,its rigid is 2-3 times than EPO, roughness is 10 times than EPO.Extremely anti-crash,even damaged with regular cut and quick traceless repair with higher strength.Much lighter than other material,more convenient and portable for users and easy maintenance!

    Comparison Test on SLF ,EPO and EPP

    SLF​ VS EPO: new material rigid is 2-3 times than EPO, roughness is 10 times than EPO
    SLF​ VS EPP: new material rigid is 2-3 times than EPP, roughness is 8 times than EPP
    SLF​ VS wooden material: new material rigid is a little bit less than wooden box material, but it is appropriately with wooden box material, but the roughness is much better than wooden box material.
    SLF​ VS glass steel: new material rigid is less than glass steel , but the roughness is much better than glass steel.
