| Place of Origin: | China |
| Brand Name: | GL |
| Certification: | CE |
| Model Number: | GLV8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Aluminum Hard Case 200*60*50CM |
| Material: | Composite And Carbon Fiber | MTOW: | 12kg |
|---|---|---|---|
| Wingspan: | 2500mm | Length: | 1190mm |
| Wing Area: | 70dm2 | Max Payload: | 5kg |
| Endurance: | 4hours | Camera: | Sony R*1Rm2 42Mp 35mmF2 |
| Dual Zoom Camera: | Optional | Take Off: | Vertical Take Off And Landing |
| PPK: | Optional | IP: | 66 |
| Full Autonomous Flight: | Yes | 3D Display: | Yes |
| GCS Set: | Hand Holding Integration GCS |

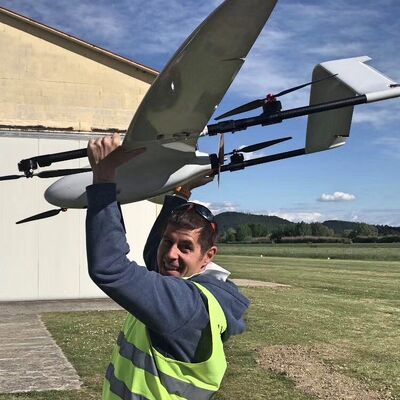

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance
Specifications
&VTOL Type:Tilting VTOL
& Wingspan:2.5Meters
& Fuselage:1.19Meters
& MTOW:12Kg
&Payload:5Kg
&Take-off & Landing:VTOL
&Endurance:240mins
&Max.speed:32m/s (Sea Level Pressure)
&Cruise speed:1m/s-25m/s(Sea Level Pressure)
&Flight Height:4900m
&Tracking Accuracy:Horizontal:5cm;Vertical:3cm
&Flight Radius:250Km
&Emergency Protection:Low Battery Protection,GEO Fence,RTL
&Image Format:RAW/JPG+Trigger Position
&Wind Resistance:Up to 10m/s
&Battery:Lithium 25500 6S 24V
&Autopilot:Autonomous Flight ,VTOL Version
&Datalink:Micohard 1W Digital Radio
&Powertrain:1*1000W brushless power(fixed wing)&4*500w Brushless power(milti-rotor)
&Camera:Sony R*1Rm2 42Mp 35mmF2
&Remote Controller:Futaba-T8fg Optional
&Antenna:7DBI Omnidirectional Antenna
&PPK:Optional 2cm Accuracy
