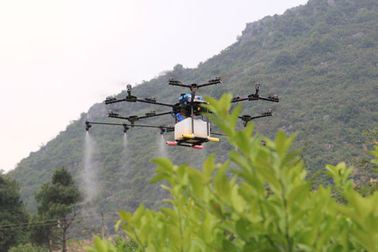

Agriculture UAV crop dusters sprayers ,Drone argriculture protection
Maximum take-off height above sea level:4500m
Max. cruising speed (No load):9-12m/s
Max. cruising speed (Full load):7m/s
Voyage Distance (without ground station):1~2km
Flying height:0.5-4m Above Crop (or Trees) during field operation
Environment Temperature :－20℃~50℃
Max.Flight Altitude:1000m
Spraying Efficency:1~3 acre/minute
Hover Accuracy :Horizontal ±1.5m, Vertical ±0.5m
Hover Features:
Arbitrary position direction air hover,Flying in any direction,To be reversed to fly Emergency brake
Frame:
Carbon Fiber Frame: 900g
High Efficiency Disc Motor:
Motor-5010: 335kv
High Efficiency Disc Motor:Motor-5010: 335kv
Propeller:28 Inch Plant Protection Carbon Fiber Propeller
ESC: Hobbywing ESC: 80A
Flight Control:DJI Professional Stable Flight Control System
The Main Battery:Battery-CP:
High Performance Lithium Polymer Battery
22.4V/22000mAH 6S1P
The Supporting Battry:
Battery-CP-Mini:
Lithium Polymer Battery
11.1V/2200mAh 3S1P
Remote Control:WFLY: 2.4G, 9 channel
Ground monitoring system:
Integrated Ground Surveillance System: 5.8G image transmission receiving system, support designed conected with the remote controller.
Monitoring Camera:HD-CP Camerea: For monitoring: 700P HD
Spraying task system:Dispersion Spray System and Booster Pump
