New 30* Optical EO/IR Sensor Dual Zoom Camera

New 30* Optical EO/IR Sensor Dual Zoom Camera
New 30* Optical EO/IR Sensor Dual Zoom Camera New 30* Optical EO/IR Sensor Dual Zoom Camera New 30* Optical EO/IR Sensor Dual Zoom Camera New 30* Optical EO/IR Sensor Dual Zoom Camera

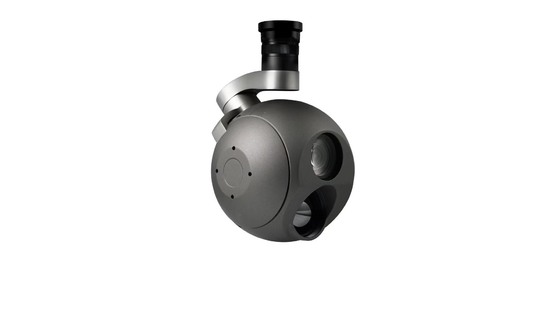

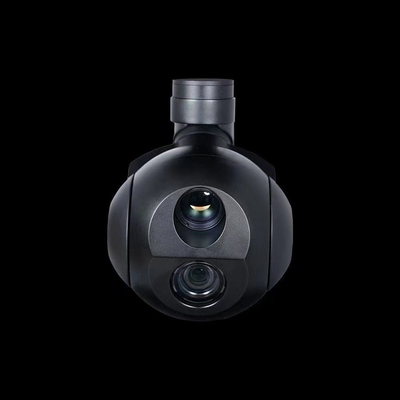

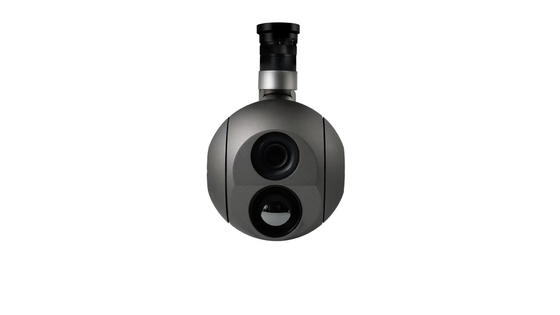

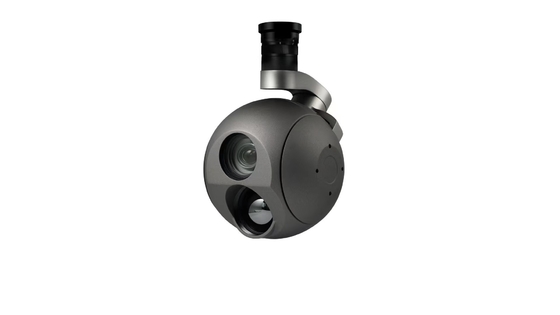

Large Image :  New 30* Optical EO/IR Sensor Dual Zoom Camera

Product Details:
Place of Origin: China
Brand Name: GL
Certification: CE
Model Number: GLZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-7days
Payment Terms: TT100%
Supply Ability: 500SETS/WEEK
TERMS: FOB
Contact Now

New 30* Optical EO/IR Sensor Dual Zoom Camera

Description
High Definition Support: 1080P (Full-HD) Media Type: HDD / Flash Memory
Optical Zoom: 30X

New 30* Optical EO/IR Sensor Dual Zoom Camera and Target Locking System



Specifications:



♦ Object locking system/Target lock capability.


Items Technical specification
Detector characteristic Detector Uncooled amorphous silicon FPA
Array format/Pixel pitch 640x480/17um
Sensitivity ≤65mk@ 300K,50HZ
Frame rate 50Hz
Spectral range 8～14um
Image processing Nonuniformity calibration No shutting technology
Instantaneous boot 〈5s
Noise reduction Digital filter
Image definition 768X576
Image frame rate 50Hz(PAL) / 60Hz(NTSC)
Lens Optional
Thermal imaging adjustment Polarity White hot /Black hot
Mirror image Horizontal/Vertical
Image zoom X10,X18,X30
Auto Gain Auto adjustment
Power Working voltage range DC: +2.5V～+5.5V
Typical working voltage DC: +3.6V
Power consumption ≤0.5W
Anti access protection Yes
Over voltage protection Yes
Environmental parameter Working temperature range -10℃～45℃
Storage temperature range -50℃～65℃
Humidity 5%～95% Non-condensing
Vibration GJB 150-16 2.3.1
Shock GJB 150-18 Test7 100g/6ms
Anti temperature impact 5℃/min(-40°C ~ +60°C)
Physical parameter Weight(No lens and back cover)
Dimension(No lens and back cover) 156×156×145MM

New 30* Optical EO/IR Sensor Dual Zoom Camera 0

New 30* Optical EO/IR Sensor Dual Zoom Camera 1



Video Demonstration:



https://youtu.be/s-qoOJdGiS4 (Target Locking System)



https://youtu.be/hrl2kaalgww



https://youtu.be/IZNA2kt8Soo



https://youtu.be/2n0YZU7zisc
