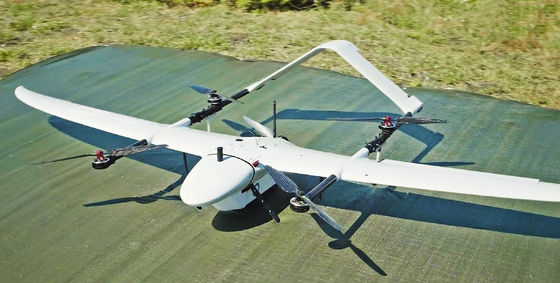

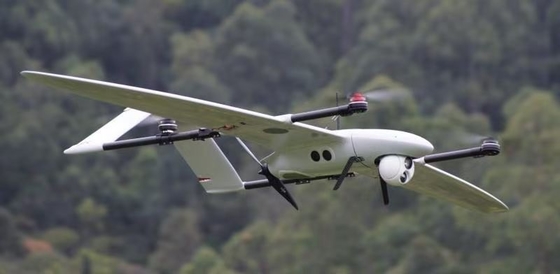

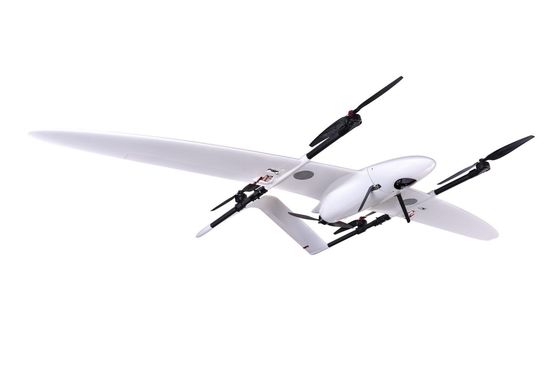

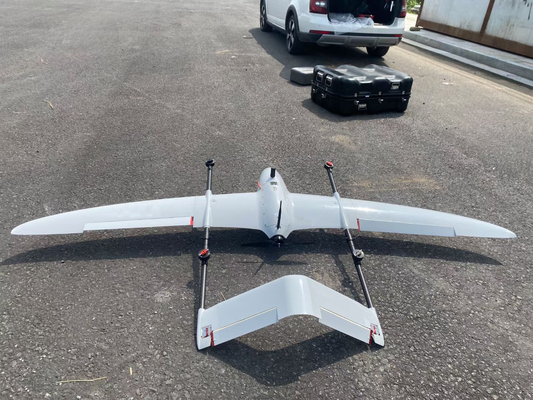

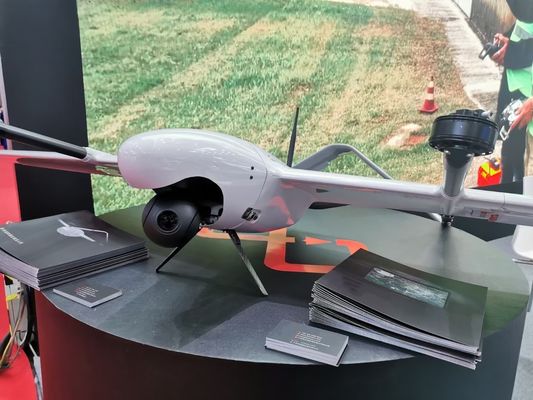

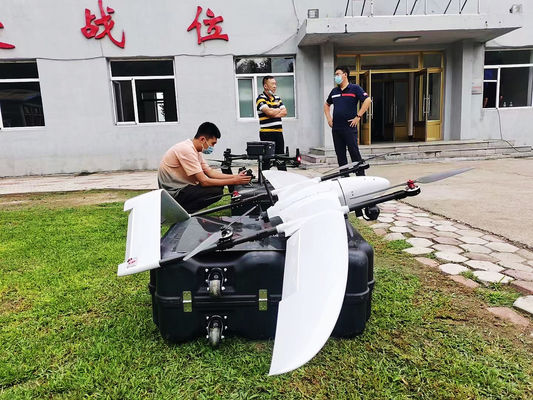

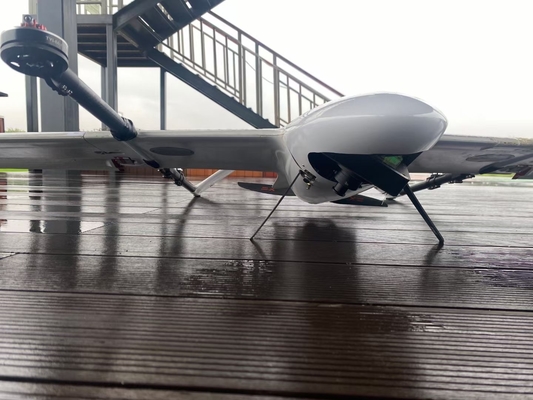

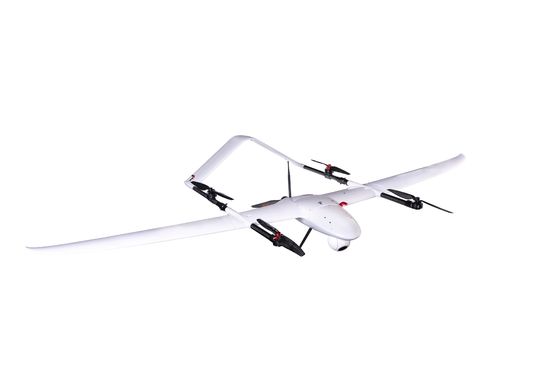

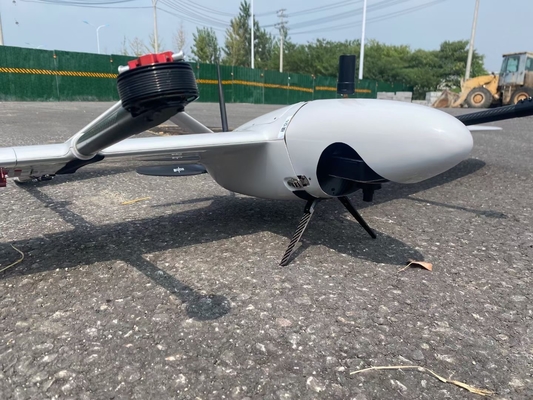

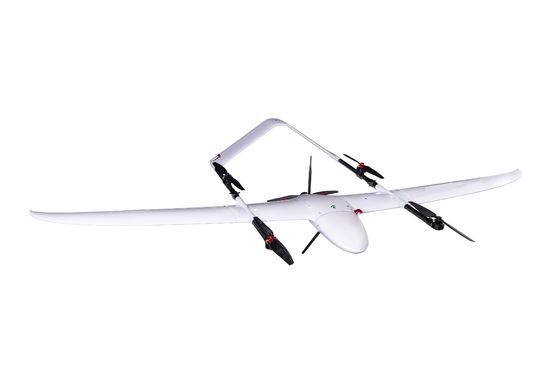

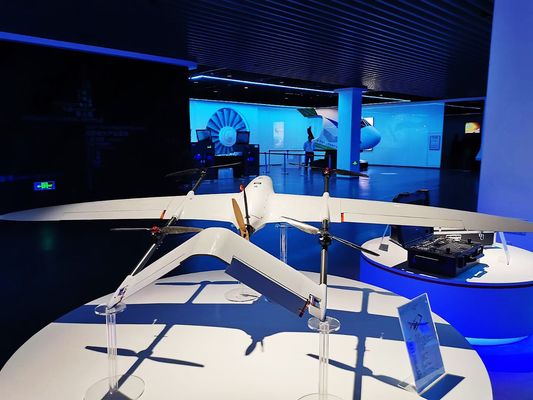

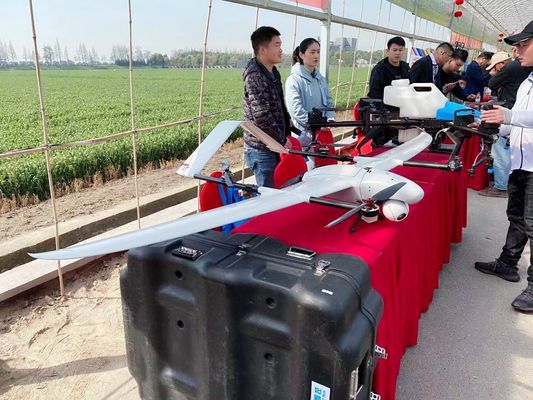

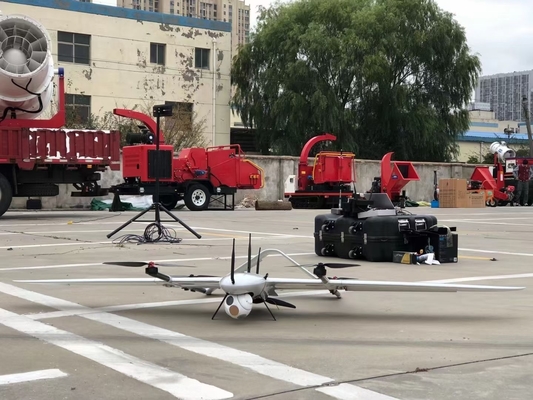

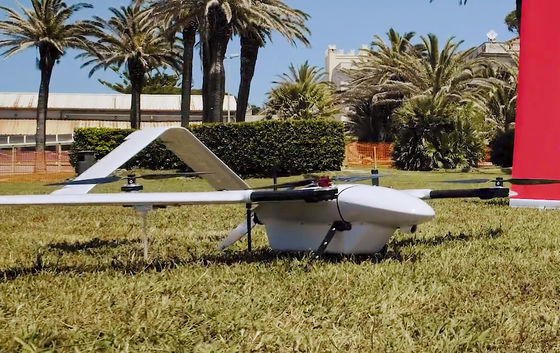

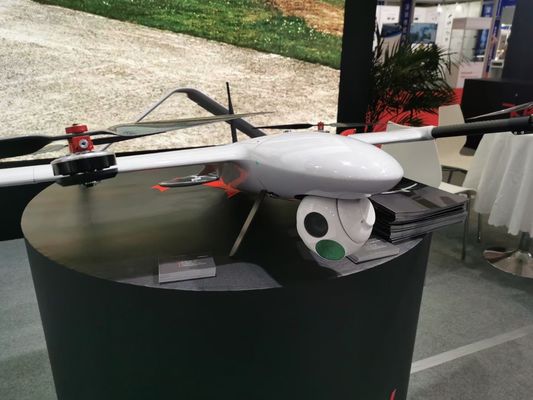

Tactical Drone Lidar PPK Oblique 3D VTOL Drone 240Mins Endurance 250Km Range Mapping

Tactical Drone Lidar PPK Oblique 3D Camera  New VTOL Drone 220Mins Endurance 250Km

Range 2.5M Wingspan Mapping and Surveillance

Specifications

& VTOL Type:Tilting VTOL

& Wingspan:2.5Meters

& Fuselage:1.19Meters

& MTOW:12Kg

&Payload:5Kg

&Take-off & Landing:VTOL

&Endurance:240mins

&Max.speed:32m/s (Sea Level Pressure)

&Cruise speed:1m/s-25m/s(Sea Level Pressure)

&Flight Height:4900m

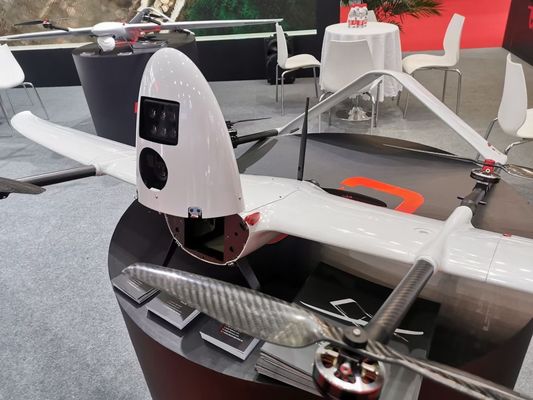

&Camera:Oblique Camera,210MP,CMOS:5pcs,35MM Lens+24MM,Oblique35,Orthophoto24,APS-C

&Tracking Accuracy:Horizontal:5cm;Vertical:3cm

&Flight Radius:250Km

&Emergency Protection:Low Battery Protection,GEO Fence,RTL

&Image Format:RAW/JPG+Trigger Position

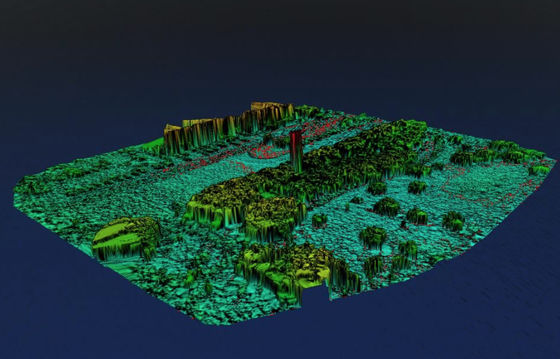

&Lidar:100 m range with compact form factor;Proven 905 nm tech, with largest install base;Top-of-the-line field-of-view;Best-in-class accuracy and calibrated intensity;Best-in-class power and temperature range;Sensor-to-sensor interference mitigation feature;Optional, enhanced short range detection;

&Wind Resistance:Up to 10m/s

&Battery:Lithium 25500 6S 24V

&Autopilot:Autonomous Flight ,VTOL Version

&Datalink:Micohard 1W Digital Radio

&Powertrain:1*1000W brushless power(fixed wing)&4*500w Brushless power(milti-rotor)

&Camera:Sony R*1Rm2 42Mp 35mmF2

&Remote Controller:Futaba-T8fg Optional

&Antenna:7DBI Omnidirectional Antenna

&PPK:Optional 2cm Accuracy
