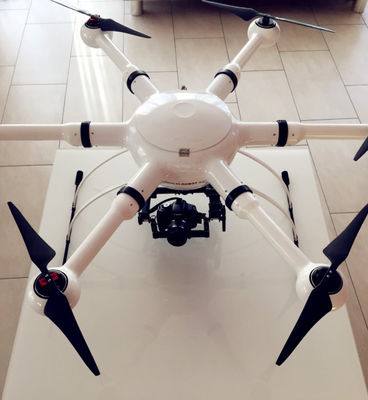

Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation

Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation

    • Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation
    • Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation
    • Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation
    • Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation
  • Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: GL
    Certification: CE
    Model Number: GLH5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: Negotiable
    Packaging Details: Aluminium Case
    Delivery Time: 1week
    Payment Terms: TT
    Supply Ability: 500SETS/WEEK
    Contact Now
    Detailed Product Description
    Max.Payload Capacity: 5kg Max.Flight Speed: 8-15m/s
    Maximum Flight Height: 5000m Maximum Flight Time: 60min
    Video Transmission Distance: 5-20km Max Wind Resistance: 7level

    Hexacopter  Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation



    Features:

    Weight:5.8kg including batteries; Payload:5kg



    Vertical Accuracy:±0.1m/s ;Horizon Accuracy:±0.8m/s



    60Mins Flight Time;



    1080P/60fps real-time 5--15km Video Transmission



    Autopilot,5Km Flight Distance



    GPS Google Mapping Multi-Point Navigation



    Three Flight Modes: Manual Operation,GPS Auto,Hovering



    Automatically activated to failsafe mode to back while losing the remote controller signal





    Specifications


    Weight (Including Battery And Propellers) 5.8kg

    Max. Payload capacity 5kg

    Diagonal Size (Including Propellers) 1000mm

    Max Ascent Speed 5m/s

    Max Descent Speed 4m/s

    Max Speed 8-15m/s

    Max Flight Time 60 mins

    ESC:BEST

    MOTORS:T MOTOR

    Airframe And Horse:Carbon Fibre

    Control range:

    Video transmit distance 5-15km

    Frequency

    Max flight height 5000m(altitude)

    Hover Accuracy Vertical:< +/- 0.5 m

    Horizontal:< +/- 1 m

    Max Angular Velocity Pitch: 300°/s

    Yaw: 150°/s

    Max tilt Angle 35º

    Max wind speed resistance 7 Level

    Operating Temperature -10° to 50° C

    GPS Mode GPS

    Camera compatible GH4, songy NeT-5, CANON 5D2/5D3, CMCC designed camera

    Gimble JPG03 3-axis gimbal

    Angular Vibration range ±0.03°

    Mounting detachable

    Controllable range Pitch:±360° Pan:±30°

    Mechanical Range Pitch/Pan: ±360°

    Max Controllable speed Pitch: ±145°/s

    Pan: ±145°/s

    Remote controller 14CH

    Operating Frequency 2.400~2.483 GHz

    Max Distance :5km

    Operating Temperature 10ºC- 40ºC

    7 inch FPV screen included

    Receiver Sensitivity (1%PER) >-93dBm

    Transmitter Power (EIRP) FCC: 20 dBm CE: 16 dBm

    Flight control UPX or UP flight controller

    Battery :

    6s-Li-Poly 20000mAh

    Operating Temperature 0ºC-40ºC

    Hexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point NavigationHexacopter Drone Google 5KM Flight Distance,Autopilot UAV,GPS Google Mapping Multi-Point Navigation





    Videos:

    https://youtu.be/GNxXEa7pI-w (GLH5 Flight In Europe)
