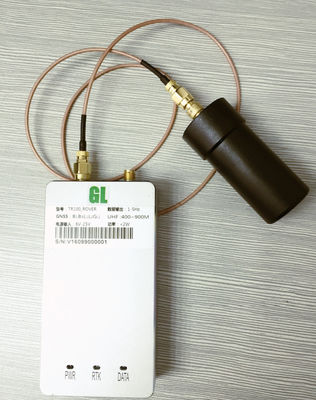

RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible

RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible
RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible

Large Image :  RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible

Product Details:
Place of Origin: CHINA
Brand Name: GL
Certification: CE,ISO,ROHS
Model Number: GLTR100
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Not Show Here
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: 500Sets/Month
Contact Now

RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible

Description
Navigation System: GPS;Beidou;GLONASS;Galileo Frequency: Dual
Accuracy: 1CM Pixhawk Compatible: Yes
Protocol: NMEA0183

RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible



RTK GPS Accuracy(RMS) :

horizontal:1cm+1ppm

vertical:2cm+1ppm

Frequency:Dual

Direction Accuracy(RMS) :0.2 angle／1m base lead

Speed Accuracy(RMS):0.03m/s

Inertial Navigation Accuracy(RMS): :<5%*trip distance(no GNSS signal)

Datas Updated Frequency:10Hz

Differential data:RTCM 2.x/3.x,CMR

Radio Frequency:800M Frequency Hopping

Radio Baud Rate:115200

Antenna Connector : GNSS——SMA;Radio—-SMA

Antenna Connector Feed,impedance : 4.75 ~ 5.10 V, 50ohm

Data Interface:Serial Port——TTL_UART

Extended Port:CAN TTL_UARTIIC232_UART

Datas Protocol:NAME0183,UBLOX

Dimension:100×60×21mm

Weight:<150g

Working Ambient:-40~+70℃

Storage Ambient:-55~+85℃

RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible 0RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible 1RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible 2

RTK for Fixed Wing Drone Mapping 1cm Accuracy,Dual Frequency,GPS;Beidou;GLONASS;Galileo Pixhawk Compatible 3
