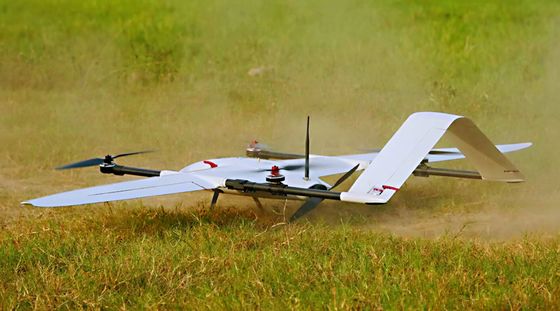

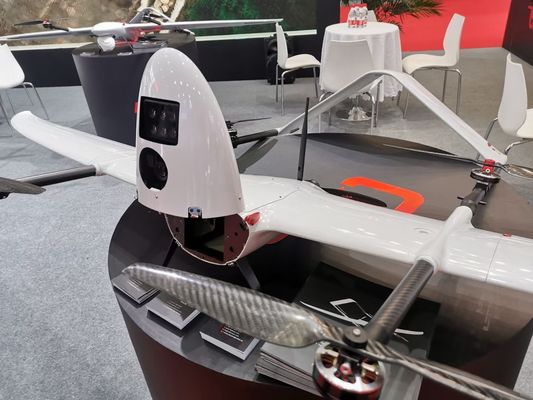

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance
PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance

Large Image :  PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance

Product Details:
Place of Origin: China
Brand Name: GL
Certification: CE
Model Number: GLV8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Aluminum Hard Case 200*60*50CM
Contact Now

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance

Description
Material: Composite And Carbon Fiber MTOW: 12kg
Wingspan: 2500mm Length: 1190mm
Wing Area: 70dm2 Max Payload: 5kg
Endurance: 4hours Camera: Sony R*1Rm2 42Mp 35mmF2
Dual Zoom Camera: Optional Take Off: Vertical Take Off And Landing
PPK: Optional IP: 66
Full Autonomous Flight: Yes 3D Display: Yes
GCS Set: Hand Holding Integration GCS

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and  Surveillance



Specifications



&VTOL Type:Tilting VTOL

& Wingspan:2.5Meters

& Fuselage:1.19Meters

& MTOW:12Kg

&Payload:5Kg

&Take-off & Landing:VTOL

&Endurance:240mins

&Max.speed:32m/s (Sea Level Pressure)

&Cruise speed:1m/s-25m/s(Sea Level Pressure)

&Flight Height:4900m

&Tracking Accuracy:Horizontal:5cm;Vertical:3cm

&Flight Radius:250Km

&Emergency Protection:Low Battery Protection,GEO Fence,RTL

&Image Format:RAW/JPG+Trigger Position

&Wind Resistance:Up to 10m/s

&Battery:Lithium 25500 6S 24V

&Autopilot:Autonomous Flight ,VTOL Version

&Datalink:Micohard 1W Digital Radio

&Powertrain:1*1000W brushless power(fixed wing)&4*500w Brushless power(milti-rotor)

&Camera:Sony R*1Rm2 42Mp 35mmF2

&Remote Controller:Futaba-T8fg Optional

&Antenna:7DBI Omnidirectional Antenna

&PPK:Optional 2cm Accuracy

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance 0

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance 1

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance 2

PPK Lidar VTOL Drone 250km Range 4hours Endurance For 3D Mapping and Surveillance 3



YouTuBe Video Link:



https://youtu.be/1D7-4QbsokQ

https://youtu.be/neqHUEXinWI



https://youtu.be/ACYvcwoEcAc



https://youtu.be/fLkP8DusW3E



https://youtu.be/4tC3XQ-bWUk


https://youtu.be/uZ-Gj7UQSUM



https://youtu.be/nLxZw_AZr7o
