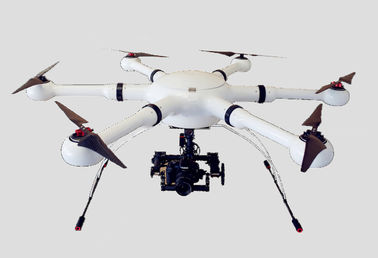

Professional Big Carbon Fiber Hexacopter

Professional Big Carbon Fiber Hexacopter

Features:

1. 3.5Kg payload capacity

2. HD (1080P) live video transmit for 5-10KM.

3. HDMI output in RC and ground control station, transfer video on ther display devices.

4. check live flight video and flight route on ground station.

5. offer customerized GLH5 payload device 6:2.5KM flight distance,40-60min flight time

Specifications

Weight (Including Battery And Propellers) 5.8kg

Max. Payload capacity 3.5kg

Diagonal Size (Including Propellers) 1000mm

Max Ascent Speed 5m/s

Max Descent Speed 4m/s

Max Speed 8-15m/s

Max Flight Time 40-60 mins

ESC:BEST

MOTORS:T MOTOR

Airframe And Horse:Carbon Fibre

Control range:

Video transmit distance 5-15km

Frequency

Max flight height 2500m(altitude)

Hover Accuracy Vertical:< +/- 0.5 m

Horizontal:< +/- 1 m

Max Angular Velocity Pitch: 300°/s

Yaw: 150°/s

Max tilt Angle 35º

Max wind speed resistance 7 Level

Operating Temperature -10° to 50° C

GPS Mode GPS

Camera compatible GH4, songy NeT-5, CANON 5D2/5D3, CMCC designed camera

Gimble JPG03 3-axis gimbal

Angular Vibration range ±0.03°

Mounting detachable

Controllable range Pitch:±360° Pan:±30°

Mechanical Range Pitch/Pan: ±360°

Max Controllable speed Pitch: ±145°/s

Pan: ±145°/s

Remote controller 14CH

Operating Frequency 2.400~2.483 GHz

Max Distance 1.1-1.5km

Operating Temperature 10ºC- 40ºC

7 inch FPV screen included

Receiver Sensitivity (1%PER) ＞-93dBm

Transmitter Power (EIRP) FCC: 20 dBm CE: 16 dBm

Flight control UPX or UP flight controller

Battery :

6s-Li-Poly  20000mAh

Operating Temperature 0ºC-40ºC

Videos:

https://youtu.be/GNxXEa7pI-w (GLH5 Flight In Europe)
