    Product Details:

    Place of Origin: China
    Brand Name: GL
    Certification: CE
    Model Number: GL-Triple3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: FOB
    Packaging Details: Portable Hard Case
    Delivery Time: 5Days
    Payment Terms: TT
    Supply Ability: 300Sets/Week
    Contact Now
    Detailed Product Description

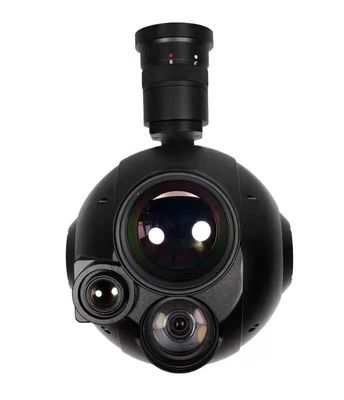

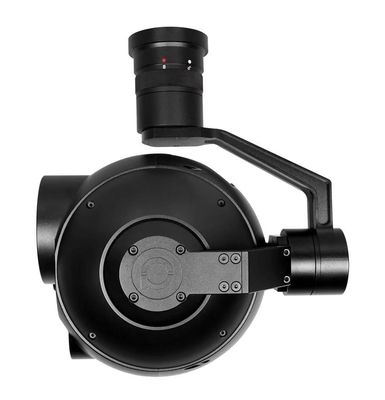

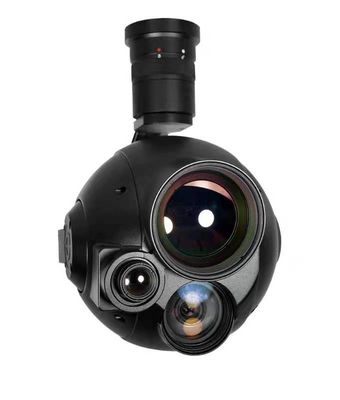

    Triple Gimbal Integrated with 30*Zoom Optical and 2 thermal Image cameras with Target locking System ​

    Triple Gimbal Integrated with  30*Zoom Optical and 2 thermal Image cameras with Target locking SystemTriple Gimbal Integrated with  30*Zoom Optical and 2 thermal Image cameras with Target locking System

    Triple Gimbal Integrated with  30*Zoom Optical and 2 thermal Image cameras with Target locking System



    Detailed Specifications :



    Hardware Parameter
    Working voltage 12V
    Input voltage 3S ~ 6S
    Output voltage 5V (connect with PWM)
    Dynamic current 850~1300mA @ 12V
    Idle current 850mA @ 12V
    Working environment temp. -20 ~ +60
    Output micro HDMI(1080P 60/50/30/25fps) / IP (1080P/720p)
    Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
    Photo storage format JPG(1920*1080)
    Video storage format MP4 (1080P/720P 25fps/30fps)
    Control method PWM / TTL / S.BUS / TCP(IP output)
    Gimbal Spec
    Mechanical Range Pitch/Tilt: -40110°, Roll: ±75°, Yaw/Pan: ±300° / ±360°*N (IP output version)
    Controllable Range Pitch/Tilt: -35°90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
    Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
    One-key to center
    Camera spec
    Imager Sensor SONY 1/2.8" "Exmor R" CMOS
    Picture quality Full HD 1080 (1920*1080)
    Effective pixel 2.13MP
    Lens optical zoom 30x, F=4.3~129mm
    Digital zoom 12x (360x with optical zoom)
    Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
    Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
    Sync system Internal
    S/N ratio more than 50dB
    Min illumination Color 0.01lux@F1.6
    Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
    Gain

    Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)

    Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)

    White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix /Auto/Outdoor Auto)
    Shutter speed 1/1s to 1/10,000s, 22 steps
    Backlight compensation Yes
    Aperture control 16 steps
    Defog Yes
    OSD Yes
    Camera Object Tracking
    Update rate of deviation pixel 50Hz
    Output delay of deviation pixel 5ms
    Minimum object contrast 5%
    SNR 4
    Minimum object size 32*32 pixel
    Maximum object size 128*128 pixel
    Tracking speed 32 pixel/frame
    Object memory time 100 frames (4s)
    The mean square root values of pulse noise in the object position < 0.5 pixel
    Thermal Imager Spec
    Lens size 52mm
    Horizontal FOV 11.9°
    Vertical FOV
    Diagonal FOV 14.9°
    Detective Distance (Man: 1.8x0.5m) 1529 meters
    Recognize Distance (Man: 1.8x0.5m) 382 meters
    Verified Distance (Man: 1.8x0.5m) 191 meters
    Detective Distance (Car: 4.2x1.8m) 4690 meters
    Recognize Distance (Car: 4.2x1.8m) 1173 meters
    Verified Distance (Car: 4.2x1.8m) 586 meters
    Working mode Uncooled long wave (8μm~14μm) thermal imager
    Detector pixel 640*512
    Pixel size 17μm
    Focusing method Athermal prime lens
    Emissivity correction 0.01~1
    NETD ≤50mK (@25)
    MRTD ≤650mK (@characteristic frequency)
    Image enhancement Auto adjust image brightness and contrast ratio
    Color palette White, iron red, pseudo color
    Auto Non-uniform correction Yes (no shutter)
    Digital zoom 1x ~ 4x
    Sync correct time Yes
    Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
    Temperature warning 0~120 (For thermometry version only)
    Thermal Imager Spec
    Lens size 13mm
    Horizontal FOV 45.4°
    Vertical FOV 34.8°
    Diagonal FOV 55.2°
    Detective Distance (Man: 1.8x0.5m) 382 meters
    Recognize Distance (Man: 1.8x0.5m) 96 meters
    Verified Distance (Man: 1.8x0.5m) 48 meters
    Detective Distance (Car: 4.2x1.8m) 1173 meters
    Recognize Distance (Car: 4.2x1.8m) 293 meters
    Verified Distance (Car: 4.2x1.8m) 147 meters
    Working mode Uncooled long wave (8μm~14μm) thermal imager
    Detector pixel 640*512
    Pixel size 17μm
    Focusing method Athermal prime lens
    Emissivity correction 0.01~1
    NETD ≤50mK (@25)
    MRTD ≤650mK (@characteristic frequency)
    Image enhancement Auto adjust image brightness and contrast ratio
    Color palette White, iron red, pseudo color
    Auto Non-uniform correction Yes (no shutter)
    Digital zoom 1x ~ 4x
    Sync correct time Yes
    Thermal Imager Object Tracking
    Update rate of deviation pixel 50Hz
    Output delay of deviation pixel 5ms
    Minimum object size 32*32 pixel
    Maximum object size 128*128 pixel
    Tracking speed 32 pixel/frame
    Object memory time 100 frames (4s)
    Packing Information
    N.W. 1457g / 1540
    Product meas. 172.6*127.7*198.6mm
    Accessories 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
    G.W. 3630g
    Package meas. 360*300*250mm



    Video Link : https://youtu.be/W8ZAgu0HAfA
