| Place of Origin: | China |
| Brand Name: | GL |
| Certification: | CE |
| Model Number: | GLZ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | TT100% |
| Supply Ability: | 500SETS/WEEK |
| TERMS: | FOB |
| High Definition Support: | 1080P (Full-HD) | Media Type: | HDD / Flash Memory |
|---|---|---|---|
| Optical Zoom: | 10* 20* 30* Zoomable | Dimension: | 156×156×145MM |
| Color: | Black | IR Sensor: | 640*512 |
| Object Locking System: | Object Locking System/Target Lock Capability. |

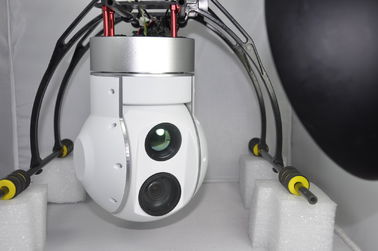

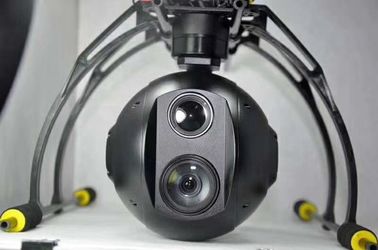

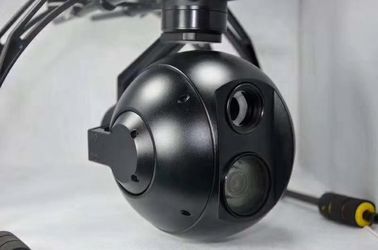

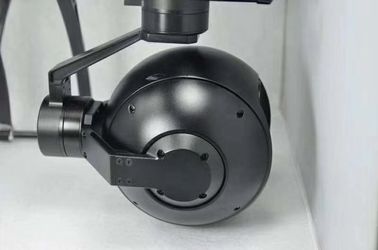

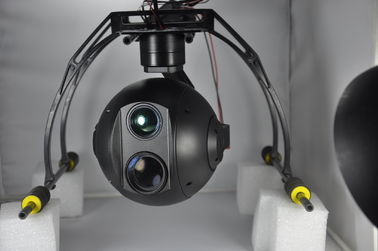

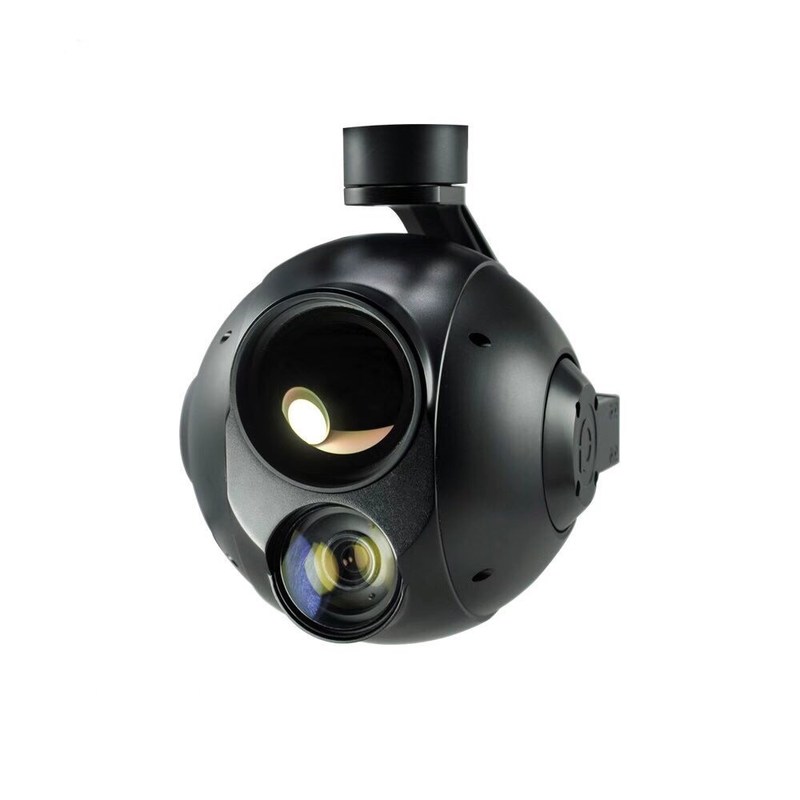

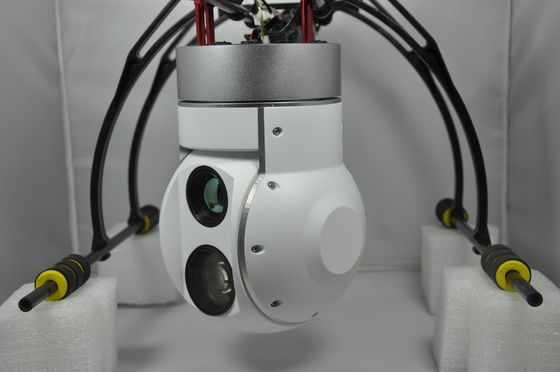

10* 20* 30* Optical EO/IR Sensor Dual Zoom Camera and Target Locking System For Drone Surveillance
Specifications:
♦ Object locking system/Target lock capability.
| Items | Technical specification | |
| Detector characteristic | Detector | Uncooled amorphous silicon FPA |
| Array format/Pixel pitch | 640x512/17um | |
| Sensitivity | ≤65mk@ 300K,50HZ | |
| Frame rate | 50Hz | |
| Spectral range | 8～14um | |
| Image processing | Nonuniformity calibration | No shutting technology |
| Instantaneous boot | 〈5s | |
| Noise reduction | Digital filter | |
| Image definition | 768X576 | |
| Image frame rate | 50Hz(PAL) / 60Hz(NTSC) | |
| Lens | Optional | |
| Thermal imaging adjustment | Polarity | White hot /Black hot |
| Mirror image | Horizontal/Vertical | |
| Image zoom | X10,X18,X30 | |
| Auto Gain | Auto adjustment | |
| Power | Working voltage range | DC: +2.5V～+5.5V |
| Typical working voltage | DC: +3.6V | |
| Power consumption | ≤0.5W | |
| Anti access protection | Yes | |
| Over voltage protection | Yes | |
| Environmental parameter | Working temperature range | -10℃～45℃ |
| Storage temperature range | -50℃～65℃ | |
| Humidity | 5%～95% Non-condensing | |
| Vibration | GJB 150-16 2.3.1 | |
| Shock | GJB 150-18 Test7 100g/6ms | |
| Anti temperature impact | 5℃/min(-40°C ~ +60°C) | |
| Physical parameter | Weight(No lens and back cover) | |
| Dimension(No lens and back cover) | 156×156×145MM | |
Video Demonstration:
https://youtu.be/s-qoOJdGiS4 (Target Locking System)
https://youtu.be/hrl2kaalgww
https://youtu.be/IZNA2kt8Soo
https://youtu.be/2n0YZU7zisc
