4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance

4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance

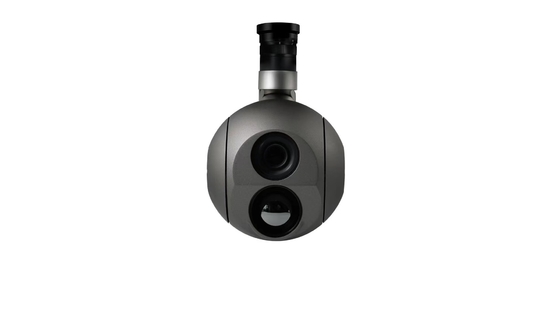

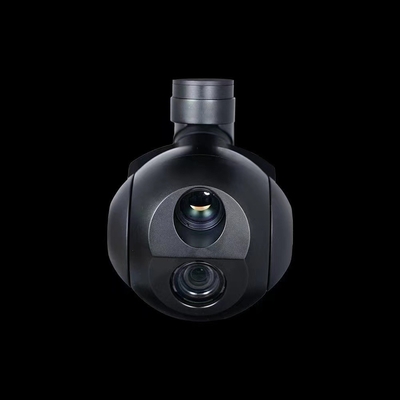

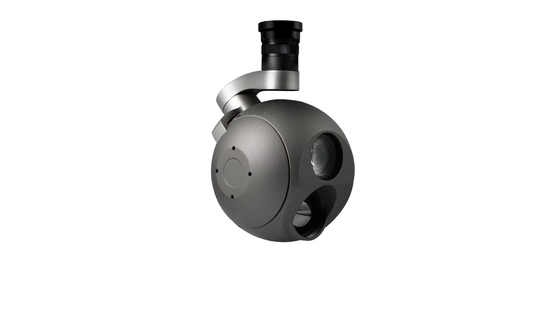

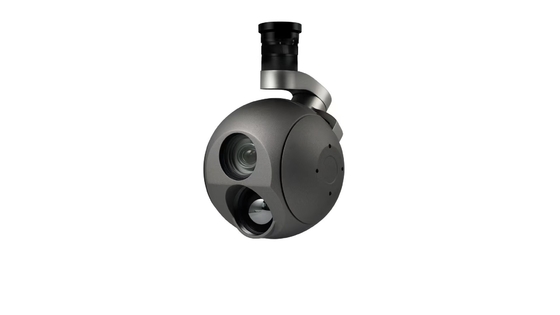

4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance 4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance 4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance 4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance

Large Image :  4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance

Product Details:
Place of Origin: China
Brand Name: GL
Certification: CE
Model Number: GLZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-7days
Payment Terms: TT100%
Supply Ability: 100SETS/WEEK
TERMS: FOB
Contact Now

4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance

Description
High Definition Support: 4K Optical Zoom: 30X
Color: Black Work Temperature: -30℃～85℃
Input Voltage: 3S～6S（14.8～22.2V） Gimbal: 3axis
Control Accuracy: 0.03° Control Angle Range: -40°～40°（Rolling），-120°～30°（Pitching）；-170°～170°（Direction）
Material: Aerolite;Nylon

4K  30* Optical EO/IR Sensor Dual Zoom Camera and Target Locking System For Surveillance





Detailed Specifications :



Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 850~1300mA @ 12V
Idle current 850mA @ 12V
Working environment temp. -30℃ ~ +85℃
Output micro HDMI(4K) / IP (4K)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4 4K
Control method PWM / TTL / S.BUS / TCP(IP output)
Gimbal Spec
Mechanical Range Pitch/Tilt: -40～110°, Roll: ±75°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -35°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center √
Camera spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality 4K
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 30*
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 4K mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain

Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)

Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix /Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Thermal Imager Spec
Lens size 50mm
Horizontal FOV 11.9°
Vertical FOV 9°
Diagonal FOV 14.9°
Detective Distance (Man: 1.8x0.5m) 1529 meters
Recognize Distance (Man: 1.8x0.5m) 382 meters
Verified Distance (Man: 1.8x0.5m) 191 meters
Detective Distance (Car: 4.2x1.8m) 4690 meters
Recognize Distance (Car: 4.2x1.8m) 1173 meters
Verified Distance (Car: 4.2x1.8m) 586 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 1280*1024
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 30*
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~120℃ (For thermometry version only)

Thermal Imager Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
Packing Information
N.W. 1457g / 1540
Product meas. 172.6*127.7*198.6mm
Accessories 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W. 3630g
Package meas. 360*300*250mm




4K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance 04K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance 14K 30* Optical EO/IR Sensor Dual Zoom Camera with Target Locking System For Surveillance 2





Video Demonstration:



    https://youtu.be/s-qoOJdGiS4  (Target Locking System)



    https://youtu.be/hrl2kaalgww



    https://youtu.be/IZNA2kt8Soo



    https://youtu.be/2n0YZU7zisc
