GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point

China GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point supplier
GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point supplier GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point supplier GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point supplier GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point supplier

Large Image :  GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point

Product Details:

Place of Origin: China
Brand Name: GL
Certification: CE
Model Number: GLG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Subject to Solutions
Packaging Details: Carton or Aluminum Hard CASE
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 500SETS
Contact Now
Detailed Product Description
Protection Level: IP67 Type: Outlet Box
Weight: 550g Flight Duration: 90mins
Flight Distance: 80Km Material: SLF

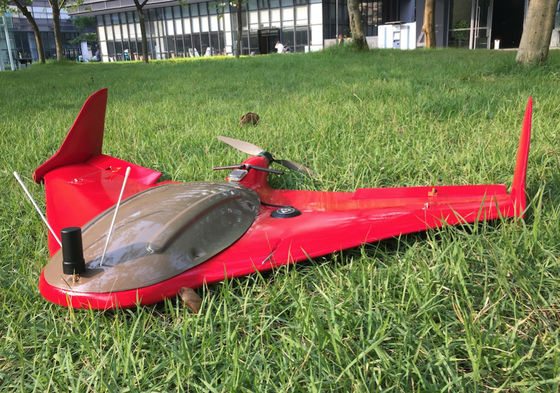

GLG Fixed-Wing Drone, 90mins Duration,GCS Remote Control Camera,80Km Google Map Multi-Point



1. Integral type body.

2. Portable and suit for rough handling in the wild.

3. It's really safe,reliable and durable.Really cost-effective for consumers.

4. Reasonable located the parachute,camera,flying controller and data transmitter.

Materials:SLF;high temperature resistance fibre

Weight(Kit):800G

Weight(RTF):2.5-3.5Kg

Wingspan:1300mm

Length: 825mm

Flight Control:PIXHAWK Flight Control

Wing area: 30dm2

Payload:2kg

Take off: Throw Go

Flight Altitude:5000m

Flight Speed:65-70km/h

Flight Duration:90mins

Flight Distance:80Km

Wind Proof:6 level

Landing:Parachute or downhill race

Camera:Sony NEX-5N Resolution 4912*3264  HD1080p

Motor:3520 kv700  Brushless  Motor

GPS Module:M8N GPS

ESC: 60A

Propeller:  10*8   folding

Battery: 10000mah 6S Li-Po

Take off weight:3500G



KIT,ARF,RTF and Optional Accessories



NO

Items

Quantity

1.1 KIT

GLG Drone

1Set





1.2 ARF

GLG Drone

1Set

3520 kv700  Brushless  Motor

1Set

17g EMAX analog Servo

2pieces

ESC

60A

9g EMAX analog Servo

1piece













        1.3 RTF

GLG Drone

1Set

WFT09II  Remote Controller

1 Set

10000mah 6S Li-Po

1Set

3520 kv700  Brushless  Motor

1Set

ESC

60A

17g EMAX analog Servo

2pieces

9g EMAX analog Servo

1piece

11 inches Folding Propeller

1piece

Optional Accessories

2

Improved PIX Flight Control

1set

3

OSD System

1set

4

Digital Transmission  system

1set

5

GPS Module:M8N GPS System

1set

6

Airspeed

1 set



Amperemeter

1 set

7

5.8g Image transmission1W+Receiver+antenna System

1set

8

Camera Sony NEX 5N

1set

9

Polycom Camera 16G

1set

10

Link V2 433MHZ 16C RC Range-Extended

1set

11

7-inch Display Screen all-in-one



12

2KG Parachute-GLG

1set

13

Ground Station Control Center

1 set

GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point
GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point
GLG Fixed-Wing Drone, 90mins,GCS Remote Control Camera :80Km,Google Map Multi-Point


Videos Shares

Youtube:

                    https://youtu.be/1tMzzzd4Dyk

(GLG  Autonomous Flight Aviation Telemetry Test 74KM,80mins)





https://youtu.be/aY7M_fxuwVc (GLG+ GCS Flight Route Planning)



Notes for SLF Materials:

SLF is Super light fiber woven material,a new technology material applied in military,agriculture,reconnaissance.It has been totally improved in configuration and function compared with EPO,EPP.Its density is between EPO and EPP,its rigid is 2-3 times than EPO, roughness is 10 times than EPO.Extremely anti-crash,even damaged with regular cut and quick traceless repair with higher strength.Much lighter than other material,more convenient and portable for users and easy maintenance!

Comparison Test on SLF ,EPO and EPP

SLF​ VS EPO: new material rigid is 2-3 times than EPO, roughness is 10 times than EPO
SLF​ VS EPP: new material rigid is 2-3 times than EPP, roughness is 8 times than EPP
SLF​ VS wooden material: new material rigid is a little bit less than wooden box material, but it is appropriately with wooden box material, but the roughness is much better than wooden box material.
SLF​ VS glass steel: new material rigid is less than glass steel , but the roughness is much better than glass steel.
