| Place of Origin: | China |
| Brand Name: | GL |
| Certification: | CE |
| Model Number: | GLH100 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Email/Call |
| Packaging Details: | Carton Package |
| Payment Terms: | T/T |
| Supply Ability: | 200sets/month |
| Transmitting Power: | 1W ;5W ; 10W | Transmission Range: | 20Km,30Km,50Km,100Km |
|---|---|---|---|
| Video Output: | HDMI/RJ45 IP | Working Frequency: | 300-350MHz Or 560-610MHz |
| Weight: | 148g/298g/261g/382g (1W,5W,10W) | Delay: | <185ms |
| Encryption: | 128 Bit AES | Working Voltage: | DC12V |
| Working Ampere: | 1.3A/0.35A/2.8A/5.9A/0.95A(1w,5w,10w) |

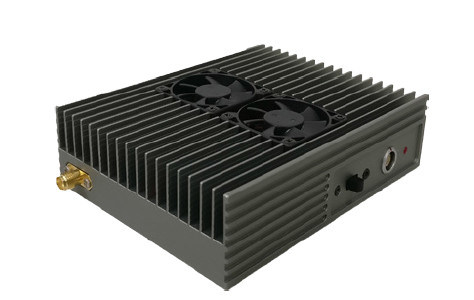

100KM Wireless HD 1080P Image Video FPV Transmission System for Long Range FPV and Surveillance Drone
Specifications:
| Transmitting Device | ||
| Modulation Mode | COFDM/2K | |
| working Request | 300MHz-2.7GHz | |
| RF Bandwidth | 2-8MHZ | |
| RF Power | 1000mW(Standard) | |
| Transmitting speed | 8Mbps-12Mbps | |
| Transmitting Distance | 20km ;50km ; 100km | |
| Video Resolution | 1920*1080@60p/50/30p/25p | |
| Video Input |
HDMI/SDI/CVBS |
|
| Compression Format | H.264 | |
| Delay | <350ms | |
| RF Connector | SMA Connector | |
| Audio/Video Connector | Mini HDMI | |
| Power Connector | Air interface | |
| Working Temperature | —30℃－＋80℃ | |
| Dimension | 114*68*24mm | |
| Receiver Device | ||
| Modulation Mode | COFDM/2K | |
| Working Frequency | 280M—862MHz adjustable | |
| Video Output | 1 Channel For HDMI Digital Audio Signal | |
| 1 Channel For CVBS analog Signal | ||
| Audio Output | MPEG duo-channel | |
| Power Consumption | DC 12V@350mA | |
| Dimension | 92*75*30mm | |
| Weight | 298g | |
| Working Temperature | —30℃－＋70℃ | |
Brief Chart:
Video Link:(50--100KM Range Test)
https://youtu.be/eNAQN3cjsng
