RTK for professional fixed wing drone mapping small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible

RTK for professional fixed wing drone mapping small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible

    • RTK  for professional fixed wing drone  mapping  small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible
    • RTK  for professional fixed wing drone  mapping  small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible
    • RTK  for professional fixed wing drone  mapping  small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible
    • RTK  for professional fixed wing drone  mapping  small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible
  • RTK  for professional fixed wing drone  mapping  small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible

    Product Details:

    Place of Origin: CHINA
    Brand Name: GL
    Certification: CE,ISO,ROHS
    Model Number: GLTR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Not Show Here
    Packaging Details: Carton
    Payment Terms: T/T
    Supply Ability: 500Sets/Month
    Contact Now
    Detailed Product Description
    Navigation System: GPS;Beidou;GLONASS;Galileo Frequency: Dual
    Accuracy: 1CM Pixhawk Compatible: Yes
    Protocol: NMEA0183

    Fixed Wing Drone RTK special for professional mapping drone, small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible



    RTK GPS Accuracy(RMS) :

    horizontal:1cm+1ppm

    vertical:2cm+1ppm

    Frequency:Dual

    Direction Accuracy(RMS) :0.2 angle/1m base lead

    Speed Accuracy(RMS):0.03m/s

    Inertial Navigation Accuracy(RMS): :<5%*trip distance(no GNSS signal)

    Datas Updated Frequency:10Hz

    Differential data:RTCM 2.x/3.x,CMR

    Radio Frequency:800M Frequency Hopping

    Radio Baud Rate:115200

    Antenna Connector : GNSS——SMA;Radio—-SMA

    Antenna Connector Feed,impedance : 4.75 ~ 5.10 V, 50ohm

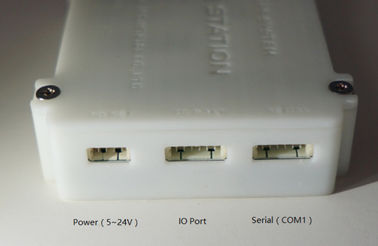

    Data Interface:Serial Port——TTL_UART

    Extended Port:CAN TTL_UARTIIC232_UART

    Datas Protocol:NAME0183,UBLOX

    Dimension:100×60×21mm

    Weight:<150g

    Working Ambient:-40~+70℃

    Storage Ambient:-55~+85℃



    RTK  for professional fixed wing drone  mapping  small size, 1cm accuracy,NMEA-0183 GPS Protocol,pixhawk compatible
