    Product Details:

    Place of Origin: CHINA
    Brand Name: GL
    Certification: CE,ISO,ROHS
    Model Number: GLP970

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Not Show Here
    Packaging Details: Carton
    Payment Terms: T/T
    Supply Ability: 500Sets/Month
    Contact Now
    Detailed Product Description
    Navigation System: GPS;Beidou;GLONASS;Galileo;SBAS;QZSS Frequency: Dual
    Accuracy: 1CM Pixhawk Compatible: Yes
    Protocol: NMEA0183,Ublox Output Format: RTCM3.X,SCMR,CMRX, BINEX
    Process Programe: Novatel Waypoint

    PPK GNSS System for Multirotor and Fixed Wing UAV Drone Mapping​



    1.Main Parameters

    GNSS SPECIFICATIONS
    220 Track Channels GPS: L1 C/A, L2E, L2C, L5;BeiDou: B1, B2;GLONASS: L1 and L2 C/A;QZSS: L1 C/A, L1 SAIF, L2C, L5 SBAS: L1 C/A, L5
    Position Accuracy Horizontal : ±(8 mm + 1 ppm) RMS
    Vertical: ±(15 mm + 1 ppm) RMS
    Processor and Inner Storage
    processoer CORTEX M3
    Inner Flash Capacity Innter 50M data capacity,Compress up to 300M
    DATA FLASH 16M FLASH
    Power Consumption <2.5W
    Update Rate Defaults:10Hz;Max:20Hz
    Storage Format 5:1Compress Ratio Format RAWDATA,RT17/RT27
    Hardware Interface
    Indicator  3 LED Indicator,Mode Indicator,Event Indicator,Satellite Signal Indicator
    Camera Control Port 2.5mm Jack for POS Signa Input
    Double Row 2*6 Jack Power Source Input,Difference Serial Port,Control Port and Compass Port
    Antenna Port 1 SMA External Antenna Port
    Mini USB Interface  1Mini USB Interface for Datas Read
    Physical Parameters
    Dimension 64x64x23.5mm
    Weight  Mainbody 110g,Helix Antenna 18g
    Working Ambient
    Work Temperature –20 °C ~60°C
    Storage Temperature  –40°C ~80°C



    2.Packing List

    ITEMS QUANTITY
    GLP970 GNSS Receiver  1

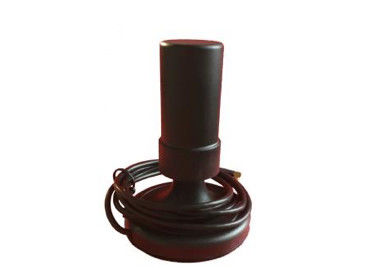

    GNSS Helix Antenna

    GPS L1 L2

    GLONASS G1 G2

    BeiDou B1 B3

    1
    USB Data Lead 1

    Power Resource Lead

    1
    Camera Control Lead 1
    Post Process Software Softdog Optional
    Hot Shoe Convertor  Optional

    PPK GNSS System for Multirotor and Fixed Wing UAV Drone Mapping

    PPK GNSS System for Multirotor and Fixed Wing UAV Drone Mapping



    PPK GNSS System for Multirotor and Fixed Wing UAV Drone MappingPPK GNSS System for Multirotor and Fixed Wing UAV Drone Mapping
