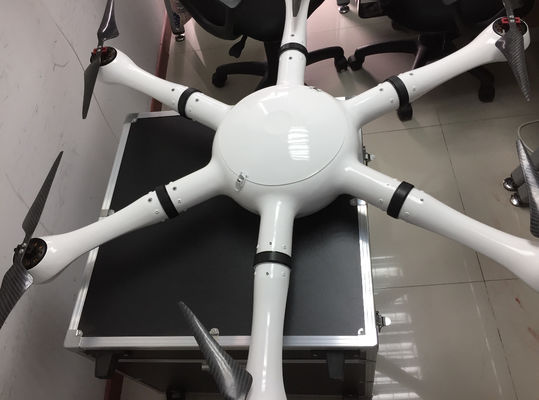

Surveillance Hexacopter Carbon Fiber Airframe 1080P/60fps real-time 5--15km Video Transmission

Surveillance Hexacopter Carbon Fiber Airframe 1080P/60fps real-time 5--15km Video Transmission

Features:

Weight:5.8kg including batteries; Payload:5kg

Vertical Accuracy:±0.1m/s ;Horizon Accuracy:±0.8m/s

60Mins Flight Time;

1080P/60fps real-time 5--15km Video Transmission

Autopilot,5Km Flight Distance

GPS Google Mapping Multi-Point Navigation

Three Flight Modes: Manual Operation,GPS Auto,Hovering

Automatically activated to failsafe mode to back while losing the remote controller signal

Specifications

Weight (Including Battery And Propellers) 5.8kg
Max. Payload capacity 5kg
Diagonal Size (Including Propellers) 1000mm
Max Ascent Speed 5m/s
Max Descent Speed 4m/s
Max Speed 8-15m/s
Max Flight Time 60 mins

ESC:BEST

MOTORS:T MOTOR

Airframe And Horse:Carbon Fibre

Control range:
Video transmit distance 5-15km
Frequency
Max flight height 5000m(altitude)
Hover Accuracy Vertical:< +/- 0.5 m
Horizontal:< +/- 1 m
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max tilt Angle 35º
Max wind speed resistance 7 Level
Operating Temperature -10° to 50° C
GPS Mode GPS
Camera compatible GH4, songy NeT-5, CANON 5D2/5D3, CMCC designed camera
Gimble JPG03 3-axis gimbal
Angular Vibration range ±0.03°
Mounting detachable
Controllable range Pitch:±360° Pan:±30°
Mechanical Range Pitch/Pan: ±360°
Max Controllable speed Pitch: ±145°/s
Pan: ±145°/s
Remote controller 14CH
Operating Frequency 2.400~2.483 GHz
Max Distance :5km
Operating Temperature 10ºC- 40ºC
7 inch FPV screen included
Receiver Sensitivity (1%PER) ＞-93dBm
Transmitter Power (EIRP) FCC: 20 dBm CE: 16 dBm
Flight control UPX or UP flight controller
Battery :
6s-Li-Poly 20000mAh
Operating Temperature 0ºC-40ºC

Videos:

https://youtu.be/GNxXEa7pI-w (GLH5 Flight In Europe)
